Immune Synapse

Immune Recognition of Tumour Antigens by T Cells

During the priming phase of anti-tumour immunity, tumour antigens are presented to T cells via APCs, such as dendritic cells (DCs) or macrophages. The specificity of T cell activation against a tumour antigen relies on the cognate recognition of the antigen presented by the major histocompatibility complex (MHC) proteins on the surface of APCs and the T cell receptor (TCR). During the effector phase of the anti-tumour immune response, primed T cells will recognise the tumour antigens presented by MHC molecules expressed by the tumour cells. CD8+ and CD4+ T cells can recognise peptides presented by MHC-I and MHC-II molecules, respectively. This TCR/MHC interaction provides the first signal for T cell activation (signal 1).

Co-stimulatory Molecules

The activation of a T cell also requires a second signal, provided by co-stimulatory molecules. The first co-stimulatory molecules historically identified belong to the immunoglobulin B7 superfamily. CD80 (also known as B7.1) and CD86 (also known as B7.2) are expressed at the surface of either APCs or cancer cells, and act as activating ligands of the co-stimulatory receptor CD28 expressed on the surface of T cells (signal 2). More recently, other co-stimulatory immune checkpoints have been described, such as OX40 (CD134), 4-1BB (CD137) or GITR (CD357). These TCRs belong to the TNF superfamily receptors (TNFSFRs) and their activation enhances T cell survival and effector functions. From the same family, CD40 is expressed on APCs and amplifies T cell activation by increasing antigen presentations. Interestingly, co-stimulatory molecules are also highly expressed on immunosuppressive regulatory T cells (Tregs). The activation of Tregs favours immune self-tolerance. Defective Tregs have been associated with autoimmune disorders, while intratumoural Tregs have been associated with a worse prognosis in many cancers.

Co-inhibitory Receptors

Upon T cell activation, negative feedback loops can prevent overstimulation of self-reactivity. Like the CD28 receptor structure, but with opposite effects, the co-inhibitory receptor CTLA-4 has been shown to bind to CD80 and CD86 with a much higher affinity than CD28, delivering inhibitory signals to T cells and therefore blocking T cell activation. The membrane expression of CTLA-4 is mostly found on CD4+ T cells, notably Tregs (Figure 1). Upon activation, the PD-1 receptor can be upregulated on T cells and can interact with two ligands: programmed death-ligand 1 (PD-L1) (also known as B7H1 or CD274) and PD-L2 (also known as B7DC or CD273). Once bound to its ligands, PD-1 confers a negative signal to effector T cells, thereby inhibiting their cytotoxic functions. CTLA-4 and PD-1 are usually highly expressed on intratumoural T cells and their stimulation is thought to contribute to the overall inhibition of anti-tumour T cells.

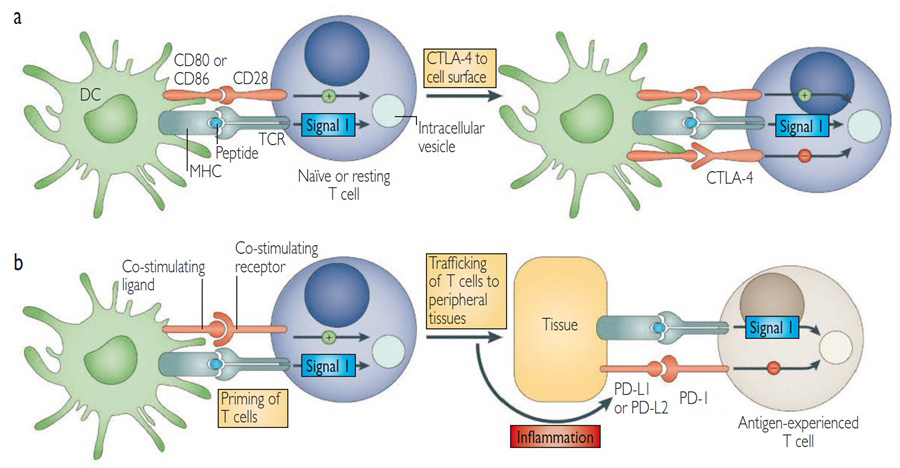

Figure 1: Evolution of CTLA-4 and PD-1 immune checkpoint expression in the immune response

Figure 1: Evolution of CTLA-4 and PD-1 immune checkpoint expression in the immune response.

(a) The CTLA-4-mediated immune checkpoint is induced in T cells at the time of their initial response to antigen. The level of CTLA-4 induction depends on the amplitude of the initial T cell receptor (TCR)-mediated signalling. High-affinity ligands induce higher levels of CTLA-4, which dampens the amplitude of the initial response. After the TCR is triggered by antigen encounter, CTLA-4 is transported to the cell surface. Therefore, CTLA-4 functions as a signal dampener to maintain a  consistent level of T cell activation.

(b) By contrast, the major role of the PD-1 pathway is not at the initial T cell activation stage but rather to regulate inflammatory responses in tissues by effector T cells recognising antigen in peripheral tissues. Inflammatory signals in the tissues induce the expression of PD-1 ligands. IFN-γ is predominantly produced by T helper 1 (TH1) cells. Excessive induction of PD-1 on T cells in the setting of chronic antigen exposure can induce an exhausted or anergic state in T cells.

Abbreviations: CTLA-4, cytotoxic T-lymphocyte antigen 4; DC, dendritic cell; IFN, interferon; MHC, major histocompatibility complex; PD-1, programmed cell death protein 1; PD-L1/2, programmed death-ligand 1/2; TCR, T cell receptor.

Pardoll DM. Figure 3: The blockade of immune checkpoints in cancer immunotherapy. Nat Rev Cancer 2012; 12:252–264. Reprinted with permission of Nature/Springer/Palgrave. Copyright ©2012

Immune Checkpoint-targeted Therapies

The scientific rationale that anti-tumour T cells could be blocked in their functions by co-inhibitory receptors led to the idea of designing antagonistic antibodies to dampen the CTLA-4/B7 and PD-1/PD-L1/2 interactions, and unleash the effector signals on T cells either at the priming or effector phases. This idea has been a major paradigm shift in the strategy to treat cancers, where instead of designing tumour-targeted therapies, we would now design immune-targeted therapies in order to break the cancer immune tolerance, restoring T cell recognition against tumour cells.

1.1 Immune Checkpoints Technical Procedures
